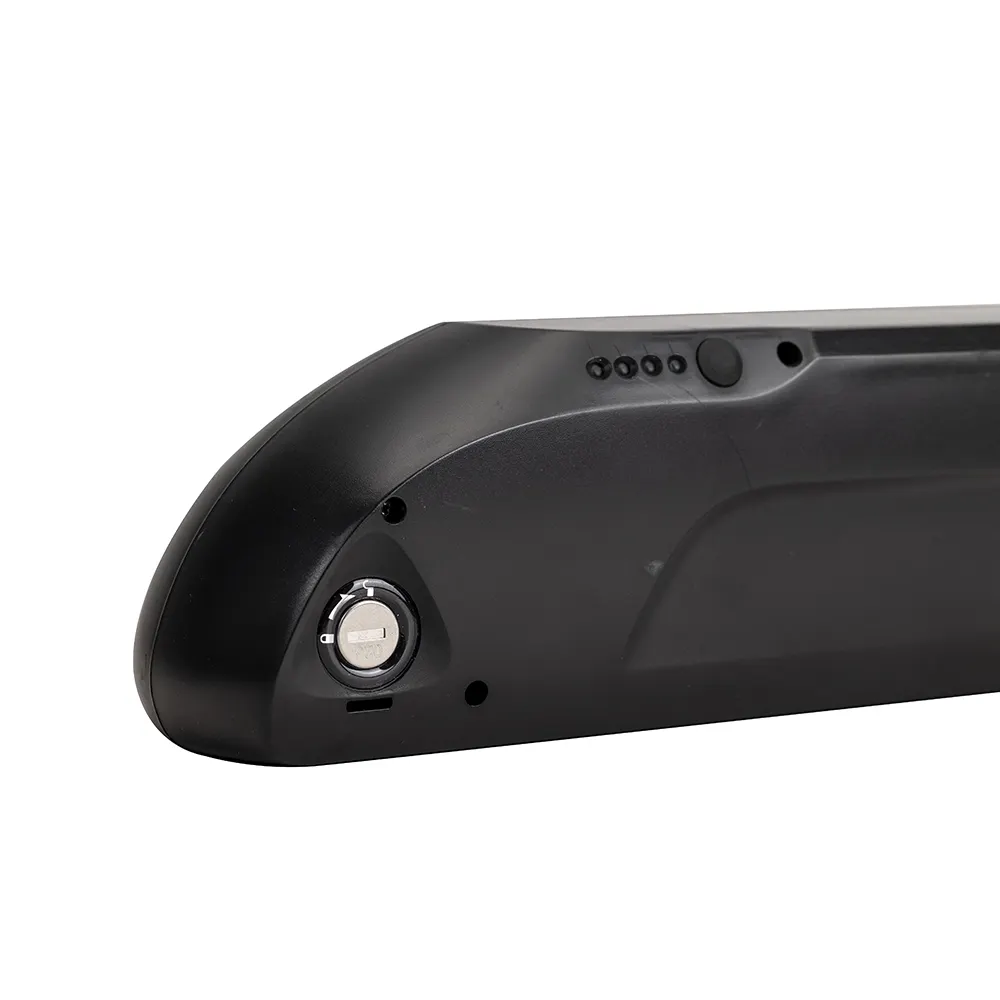

Custom Down Tube Battery Factory for Electric Bicycle 1

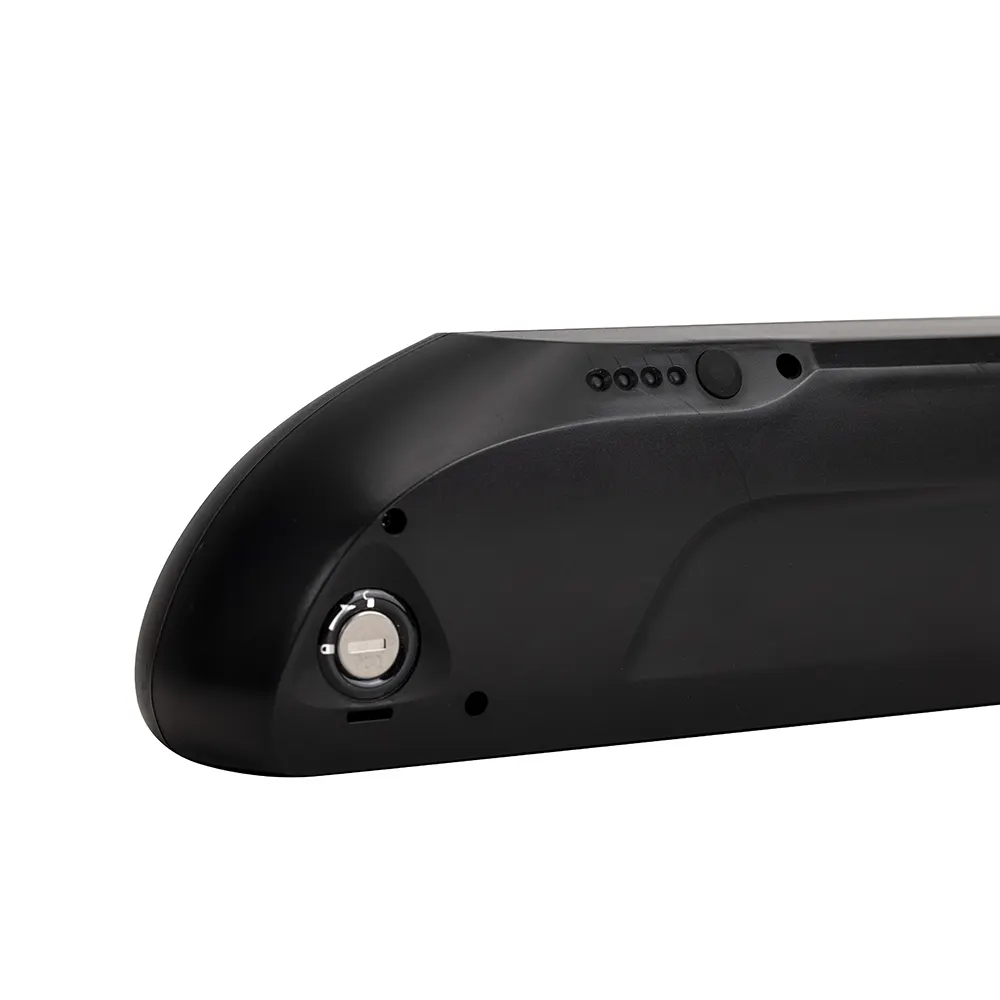

Custom Down Tube Battery Factory for Electric Bicycle 2

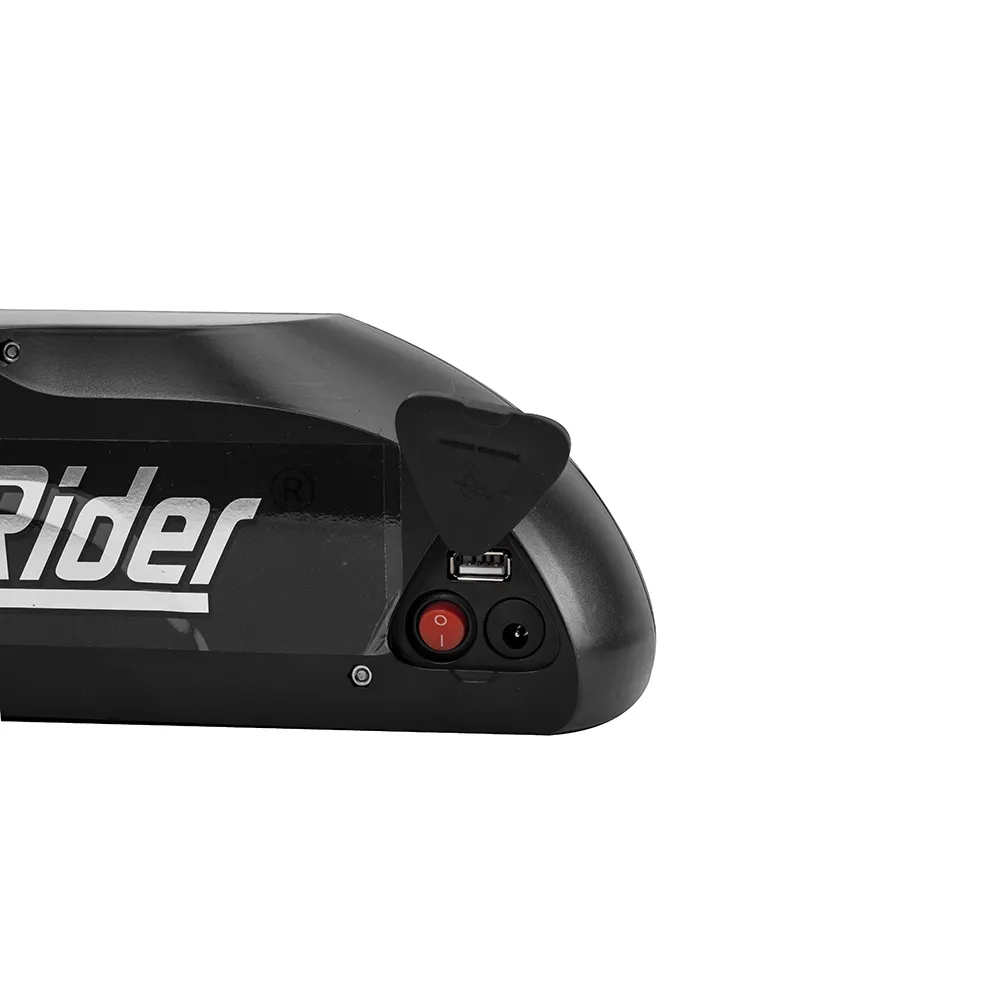

Custom Down Tube Battery Factory for Electric Bicycle 3

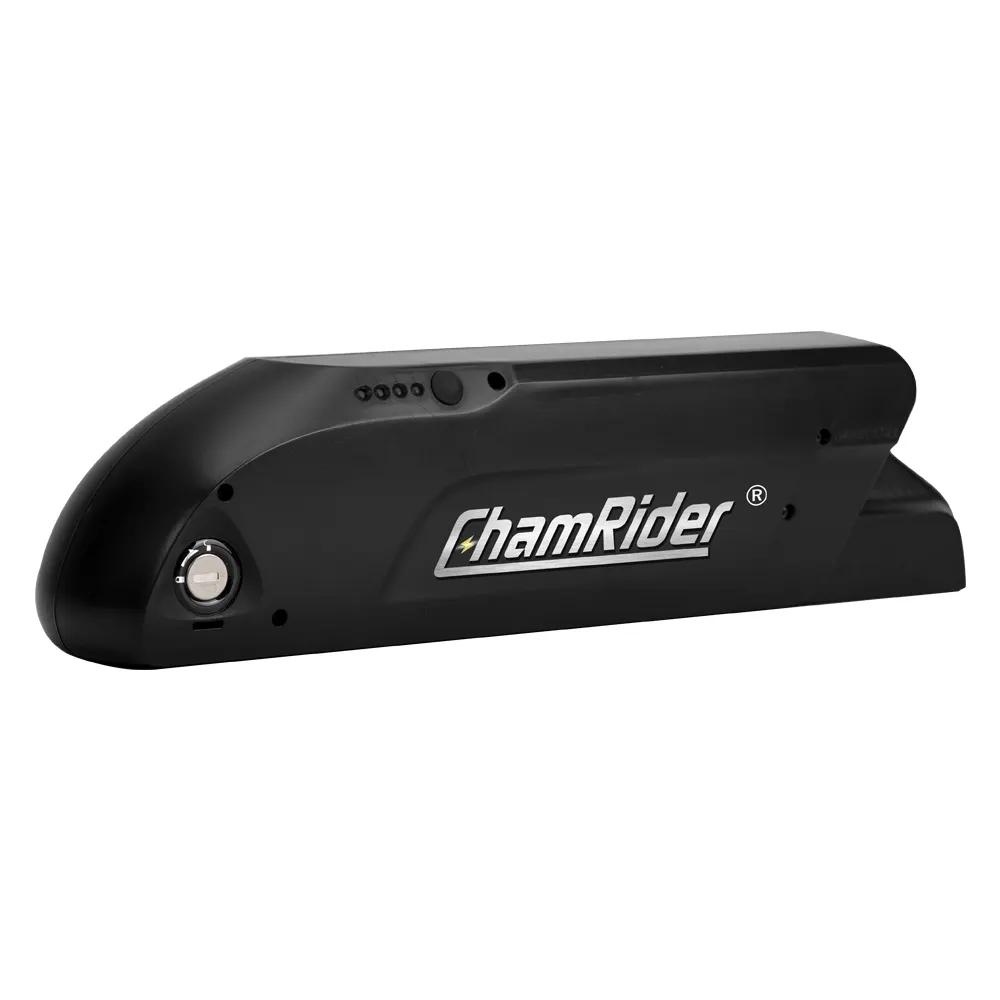

Custom Down Tube Battery Factory for Electric Bicycle 4

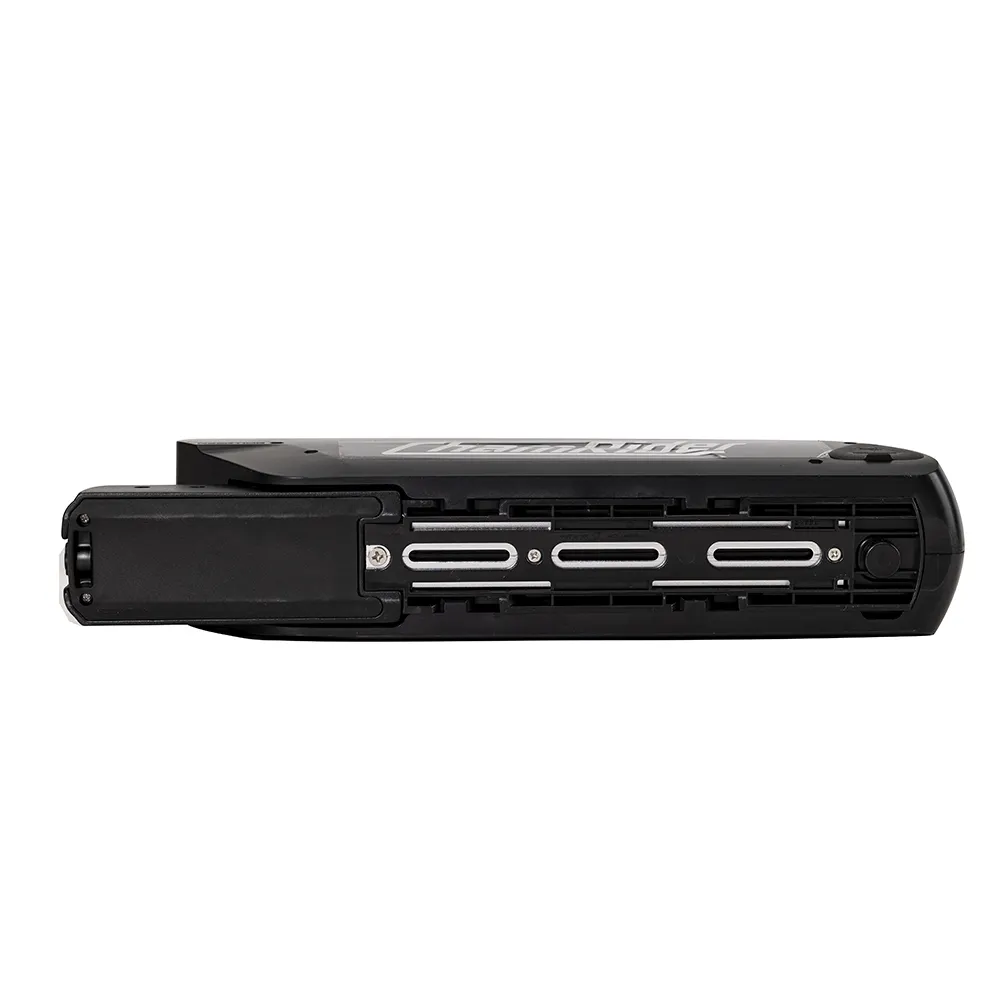

Custom Down Tube Battery Factory for Electric Bicycle 5

Custom Down Tube Battery Factory for Electric Bicycle

Inquiry

more products

Folding Ebike Battery

Send your inquiry

Product details of the down tube battery

Product Introduction

Dongguan Chamrider Technology Co., Ltd.'s R&D engineers seek the most durable hardware materials for down tube battery. To ensure its quality, our professional staff conducts the strict quality management system. Dongguan Chamrider Technology Co., Ltd. has strong technical force, strict quality management system, and perfect after-service mechanism.

Product Specification

Parameter 1

Parameter 2

Parameter	36V8AH	36V10.4AH	36V11.6AH	36V12.8AH	36V14AH
Nominal Power	288wh	374.4wh	417.6wh	460.8wh	504wh
Configuration	10S4P	10S4P	10S4P	10S4P	10S4P
Cell Brand	ChamRider	ChamRider	Samsung	ChamRider	Samsung
Cell Capacity	2000mah	2600mah	2900mah	3200mah	3500mah
Cell Type	18650
Built-in BMS	20A(Customized)	30A(Customized)
Fit Motor Power	36V250W-350W	36V250W-500W
APRX Weight（KG）	≈4.2	≈4.2	≈4.2	≈4.2	≈4.2
Dimension(mm)	37878993437899
Charge Current	1-5A
Life Cycle	≥80% Capacity After 500-800 cycles

Parameter	48V6AH	48V7.8AH	48V8.7AH	48V9.6AH	48V10.5AH
Nominal Power	288wh	374.4wh	417.6wh	460.8wh	504wh
Configuration	13S3P	13S3P	13S3P	13S3P	13S3P
Cell Brand	ChamRider	ChamRider	Samsung	ChamRider	Samsung
Cell Capacity	2000mah	2600mah	2900mah	3200mah	3500mah
Cell Type	18650
Built-in BMS	15A(Customized)	25A(Customized)			30A(Customized)
Fit Motor Power	48V250W-350W	48V250W-500W			48V250W-1000W
APRX Weight（KG）	≈4.0	≈4.0	≈4.0	≈4.0	≈4.0
Dimension(mm)	37878993437899
Charge Current	1-5A
Life Cycle	≥80% Capacity After 500-800 cycles

Product Introduction

Custom Down Tube Battery Factory for Electric Bicycle 6

Maximum Capacity with A-Grade 18650 Cells

Boasting the capacity to house up to 40 top-quality A-grade 18650 cells, the Tiger Shark 4C offers robust power supply. This ensures that your rides experience reliable, consistent power delivery.

Custom Down Tube Battery Factory for Electric Bicycle 7

Advanced BMS for Optimal Charge and Discharge

The Tiger Shark 4C comes with a sophisticated Battery Management System (BMS) for balanced battery charging and discharging. This technological marvel enhances the overall longevity of the battery, providing a seamless and efficient energy transfer.

Easy Installation

Installing the Canon 1 battery is a breeze. With its user-friendly design and clear instructions, you can quickly and effortlessly install the battery onto your Super73 bike. The Canon 1 battery comes with a plug-and-play system that simplifies the installation process, allowing you to spend less time on installation and more time on the road, enjoying the exhilarating ride.

Expandable Controller Box Compatibility

Add versatility to your electric bike setup by easily adding a controller box to the Tiger Shark 4C. This feature allows riders to enhance their e-bike's capabilities, providing flexibility and adaptability to different riding preferences and styles

Environmentally Friendly Battery Materials

Committed to sustainability, the Tiger Shark 4C is constructed using green and eco-friendly battery materials. ChamRider is committed to environmental responsibility. This ensures that your electric biking experience aligns with the principles of a cleaner and greener future.

FAQ

Can e-bike batteries be used on rainy days?

Most e-bike batteries are waterproof and can be used in light rain. However, to ensure the safety and longevity of the battery, it is best to avoid prolonged exposure to heavy rain or immersion in water.

Does the e-bike battery support removability?

The majority of e-bike batteries feature a modular design, making them easily changeable and replaceable. However, the details may vary depending on the brand and model of the e-bike.

What is the weight of the e-bike battery?

The weight of e-bike batteries varies by brand, capacity, and material. Generally speaking, the weight of e-bike batteries usually ranges from a few kilograms to more than ten kilograms.

How do you choose the right type of e-bike battery for you?

Types of e-bike batteries include lithium-ion batteries, nickel-metal hydride batteries, and so on. Lithium-ion batteries have high energy density and small size and are the most commonly used type of e-bike battery.

Do e-bike batteries have safety protection?

Most e-bike batteries are equipped with multiple safety features, such as overcharge protection, over-discharge protection, over-current protection, etc., to ensure the safety of users and equipment.
