Chamrider Battery is an ebike battery manufacturer and electric bicycle battery factory with 12 years of experience.

New E Bike Integrated Battery Factory for Electric Bike 1

New E Bike Integrated Battery Factory for Electric Bike 2

New E Bike Integrated Battery Factory for Electric Bike

Inquiry

Company Advantages

· Chamrider Battery e bike integrated battery is manufactured utilizing the finest materials and the latest production technology.

· The product is taken into seriously about its reliability and stability during the inspections. It is conducted by a strict and professional quality inspection team at every step.

· e bike integrated battery simultaneously makes Dongguan Chamrider Technology Co., Ltd.'s popularity internationally.

Product Specification

Parameter 1

Parameter 2

Parameter 3

Parameter	36V10AH	36V13AH	36V14.5AH	36V16AH	36V17.5AH
Nominal Power	360wh	468wh	522wh	576wh	630wh
Configuration	10S5P	10S5P	10S5P	10S5P	10S5P
Cell Brand	ChamRider	ChamRider	Samsung	ChamRider	Samsung
Cell Capacity	2000mah	2600mah	2900mah	3200mah	3500mah
Cell Type	18650
Built-in BMS	25A(Customized)
Fit Motor Power	36V250W-500W
APRX Weight（KG）	≈3.5	≈3.5	≈3.5	≈3.5	≈3.5

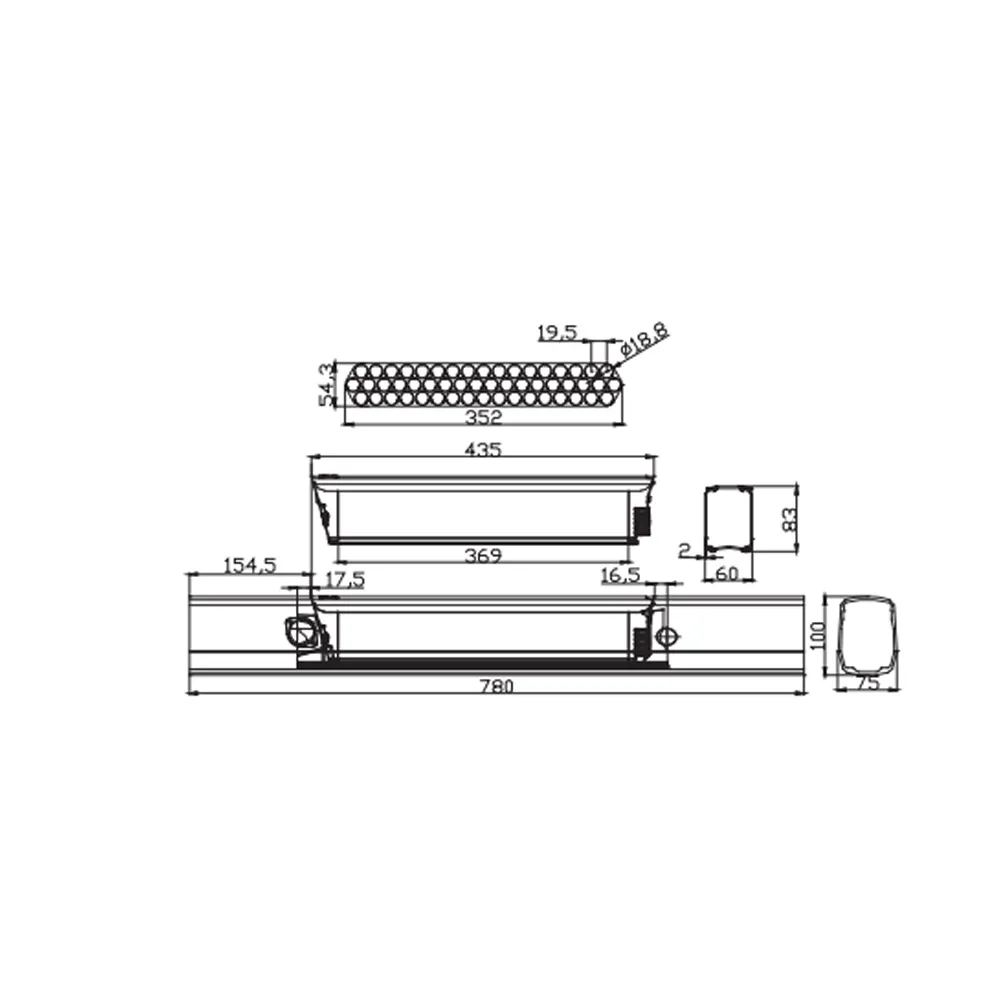

Dimension(mm)	43511075
Charge Current	1-5A
Life Cycle	≥80% Capacity After 500-800 cycles

Parameter	48V10.4AH	48V11.6AH	48V12.8AH	48V14AH
Nominal Power	499.2wh	556.8wh	614.4wh	672wh
Configuration	13S4P	13S4P	13S4P	13S4P
Cell Brand	ChamRider	Samsung	ChamRider	Samsung
Cell Capacity	2600mah	2900mah	3200mah	3500mah
Cell Type	18650
Built-in BMS	30A(Customized)
Fit Motor Power	48V250W-1000W
APRX Weight（KG）	≈3.69	≈3.69	≈3.69	≈3.69
Dimension(mm)	43511075
Charge Current	1-5A
Life Cycle	≥80% Capacity After 500-800 cycles

Parameter	52V10.5AH
Nominal Power	546wh
Configuration	14S3P
Cell Brand	Samsung
Cell Capacity	3500mah
Cell Type	18650
Built-in BMS	30A(Customized)
Fit Motor Power	52V250W-1000W
APRX Weight（KG）	≈3.54
Dimension(mm)	43511075
Charge Current	1-5A
Life Cycle	≥80% Capacity After 500-800 cycles

Product Introduction

New E Bike Integrated Battery Factory for Electric Bike 3

Controller Box Compatibility

The SEE-161 SUONITE G52 battery offers seamless compatibility with a controller box. This convenient feature allows for easy installation and integration, providing a hassle-free solution for your electric bike's power management.

New E Bike Integrated Battery Factory for Electric Bike 4

Innovative and Diverse Styling

Embrace innovation with the SEE-161 SUONITE G52. This battery boasts a wide range of novel and versatile styles, catering to various preferences and ensuring you can find the perfect match for your bike. Stand out from the crowd with a battery that not only delivers exceptional performance but also enhances the overall aesthetics of your ride.

Customizable Logo on Battery Casing

Add a personal touch to your electric bike with a customized logo on the battery casing. ChamRider offers the option to tailor the battery's appearance by incorporating your own logo, allowing you to showcase your unique brand or individual style.

Environmentally Friendly and Energy-Efficient

At ChamRider, we prioritize sustainability. The SEE-161 SUONITE G52 is constructed using environmentally friendly and energy-efficient materials, ensuring a greener and more sustainable riding experience. Enjoy the power of your electric bike while minimizing your ecological impact.

Advanced Self-Developed BMS

The SEE-161 SUONITE G52 is equipped with an advanced Battery Management System (BMS) developed in-house. This cutting-edge technology offers enhanced performance, reliability, and safety. Rest assured that your battery is intelligently managed and protected while you enjoy your electric bike adventures

FAQ

Can e-bike batteries be used on rainy days?

Most e-bike batteries are waterproof and can be used in light rain. However, to ensure the safety and longevity of the battery, it is best to avoid prolonged exposure to heavy rain or immersion in water.

Does the e-bike battery support removability?

The majority of e-bike batteries feature a modular design, making them easily changeable and replaceable. However, the details may vary depending on the brand and model of the e-bike.

What is the weight of the e-bike battery?

The weight of e-bike batteries varies by brand, capacity, and material. Generally speaking, the weight of e-bike batteries usually ranges from a few kilograms to more than ten kilograms.

How do you choose the right type of e-bike battery for you?

Types of e-bike batteries include lithium-ion batteries, nickel-metal hydride batteries, and so on. Lithium-ion batteries have high energy density and small size and are the most commonly used type of e-bike battery.

Do e-bike batteries have safety protection?

Most e-bike batteries are equipped with multiple safety features, such as overcharge protection, over-discharge protection, over-current protection, etc., to ensure the safety of users and equipment.

Company Features

· Dongguan Chamrider Technology Co., Ltd. has been one of the most famous company for its strong capacities. We design, develop, integrate, market, and service e bike integrated battery.

· We have employed the best technicians. They adhere to proven methodology, provide superior client services, which helps us become a true business partner in every project. Our focused, sound and innovative approach are derived from the cumulative experience of our team members and as a result of their combined practical business experience with strong technology delivery capabilities. We have quality-minded staff, consisting of consultants, graphic artists, designers, developers, and programmers, who have the abilities and experience to create successful solutions for customers' needs.

· We have built up a strong company culture, such as active in social charity. We encourage employees to take part in local volunteer grant programs, and regularly donating capitals for the non-profit organization.

Application of the Product

The e bike integrated battery produced by Chamrider Battery has a wide range of applications.

Chamrider Battery insists on providing customers with ebike battery of high quality and a one-stop solution that's comprehensive and efficient.

Product Comparison

Chamrider Battery's e bike integrated battery has been further improved based on advanced technology, as reflected in the following aspects.

Enterprise Advantages

Chamrider Battery has a production team with advanced technology and rich experience. The team members are dedicated to providing professional technical support for the production of quality products.

Chamrider Battery provides practical services based on different customer demand.

Chamrider Battery upholds the value of 'high-quality service, high-tech innovation, high-speed development'. We seek excellence based on laborious efforts and dedication. We constantly pursue progress and development, so as to provide professional and distinctive services.

Since the establishment in our company has accumulated rich production experience and successfully cooperated with many large domestic enterprises.

Our company has opened up the domestic and international market network, so our ebike battery is circulating in the domestic and foreign market. The products have won the praise from many customers for their excellent quality, and the output of the products has also been increased linearly.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
