Product details of the e bike battery factory

Product Introduction

The defective raw materials of Chamrider Battery e bike battery factory are eliminated. The product is competitive in terms of the quality, performance, durability, etc. Dongguan Chamrider Technology Co., Ltd. will do the follow-up with customers after the shipment.

Product Specification

Parameter 1

Parameter 2

Parameter 3

Parameter	36V10AH	36V13AH	36V14.5AH	36V16AH	36V17.5AH
Nominal Power	360wh	468wh	522wh	576wh	630wh
Configuration	10S5P	10S5P	10S5P	10S5P	10S5P
Cell Brand	ChamRider	ChamRider	Samsung	ChamRider	Samsung
Cell Capacity	2000mah	2600mah	2900mah	3200mah	3500mah
Cell Type	18650
Built-in BMS	25A(Customized)
Fit Motor Power	36V250W-350W
APRX Weight（KG）	≈4.65	≈4.65	≈4.65	≈4.65	≈4.65

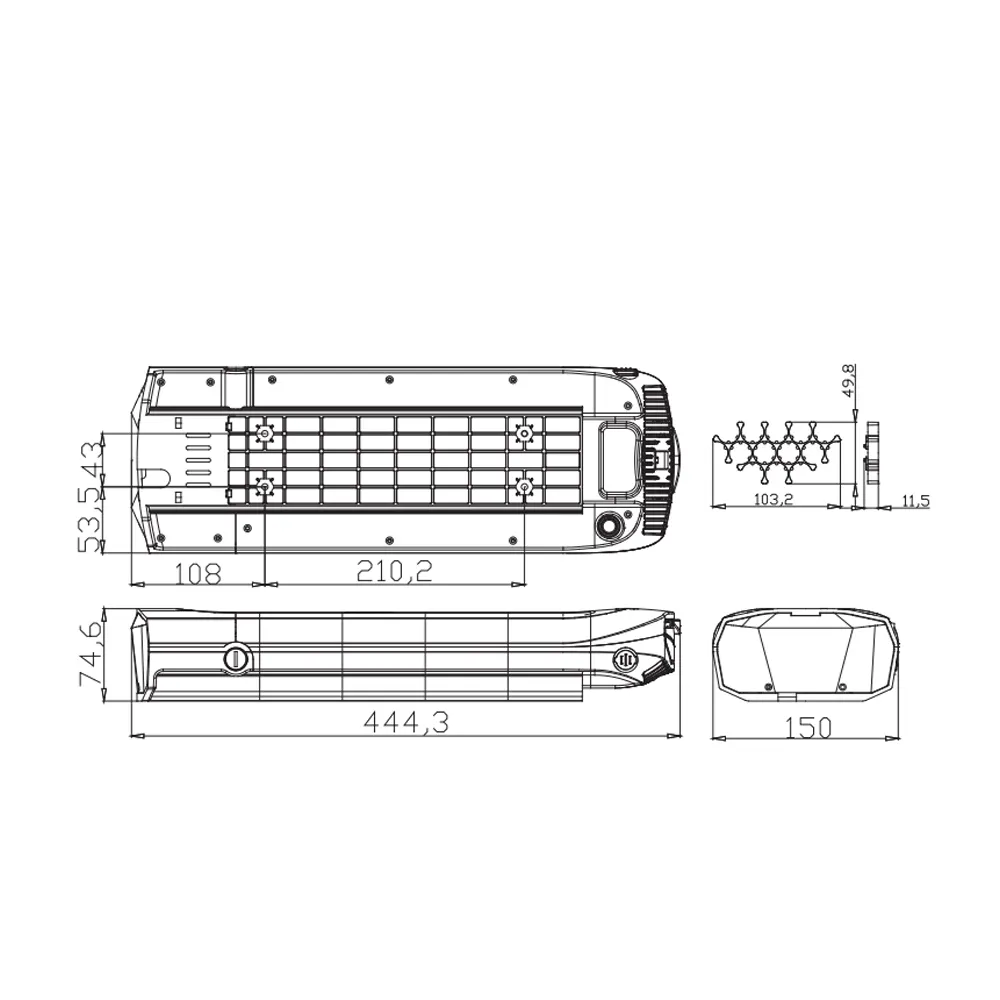

Dimension(mm)	444.315074.6
Charge Current	1-5A
Life Cycle	≥80% Capacity After 500-800 cycles

Parameter	48V8AH	48V10.4AH	48V11.6AH	48V12.8AH	48V14AH
Nominal Power	384wh	499.2wh	556.8wh	614.4wh	672wh
Configuration	13S4P	13S4P	13S4P	13S4P	13S4P
Cell Brand	ChamRider	ChamRider	Samsung	ChamRider	Samsung
Cell Capacity	2000mah	2600mah	2900mah	3200mah	3500mah
Cell Type	18650
Built-in BMS	20A(Customized)	30A(Customized)
Fit Motor Power	48V250W-500W	48V250W-1000W
APRX Weight（KG）	≈4.76	≈4.76	≈4.76	≈4.76	≈4.76
Dimension(mm)	444.315074.6
Charge Current	1-5A
Life Cycle	≥80% Capacity After 500-800 cycles

Parameter	52V6AH	52V7.8AH	52V8.7AH	52V9.6AH	52V10.5AH
Nominal Power	312wh	405.6wh	452.4wh	499.2wh	546wh
Configuration	14S3P	14S3P	14S3P	14S3P	14S3P
Cell Brand	ChamRider	ChamRider	Samsung	ChamRider	Samsung
Cell Capacity	2000mah	2600mah	2900mah	3200mah	3500mah
Cell Type	18650
Built-in BMS	15A(Customized)	20A(Customized)			30A(Customized)
Fit Motor Power	52V250W-350W	52V250W-500W			52V250W-1000W
APRX Weight（KG）	≈4.3	≈4.3	≈4.3	≈4.3	≈4.3
Dimension(mm)	444.315074.6
Charge Current	1-5A
Life Cycle	≥80% Capacity After 500-800 cycles

Product Introduction

E Bike Battery Factory Chamrider Battery Manufacture 3

Brand-New A-Grade Battery Cells

SONGXIA 3 features state-of-the-art A-grade battery cells, offering unparalleled performance and unparalleled reliability. This commitment to quality sets our battery apart, providing riders with a trusted and powerful energy source for their e-bikes.

E Bike Battery Factory Chamrider Battery Manufacture 4

Integrated Power Independent Switch

SONGXIA 3 boasts the innovative integrated power independent switch, putting ultimate control at your fingertips. This unique design element sets our battery apart, allowing riders to manage their e-bike's power with ease and convenience.

High Cycle Life – Up to 800 Cycles

SONGXIA 3 is designed for longevity, offering a high cycle life of up to 800 cycles. This exceptional durability ensures that riders can enjoy countless adventures with the confidence that their battery will stand the test of time, setting our product apart in terms of reliability and value.

Heat-Dissipating Housing with Ventilation Holes

SONGXIA 3 boasts a heat-dissipating housing with strategically placed ventilation holes, ensuring optimal temperature control during operation. This design not only enhances the battery's lifespan but also sets our product apart in terms of reliability and durability.

Internal Epoxy Board Cushion Protection

Featuring an internal epoxy board cushion protection layer, safety is of paramount importance to SONGXIA 3. This added feature acts as a buffer, providing an extra layer of protection for the battery's internal components. Our emphasis on safety guarantees a secure and worry-free riding experience.

FAQ

Can e-bike batteries be used on rainy days?

Most e-bike batteries are waterproof and can be used in light rain. However, to ensure the safety and longevity of the battery, it is best to avoid prolonged exposure to heavy rain or immersion in water.

Does the e-bike battery support removability?

The majority of e-bike batteries feature a modular design, making them easily changeable and replaceable. However, the details may vary depending on the brand and model of the e-bike.

What is the weight of the e-bike battery?

The weight of e-bike batteries varies by brand, capacity, and material. Generally speaking, the weight of e-bike batteries usually ranges from a few kilograms to more than ten kilograms.

How do you choose the right type of e-bike battery for you?

Types of e-bike batteries include lithium-ion batteries, nickel-metal hydride batteries, and so on. Lithium-ion batteries have high energy density and small size and are the most commonly used type of e-bike battery.

Do e-bike batteries have safety protection?

Most e-bike batteries are equipped with multiple safety features, such as overcharge protection, over-discharge protection, over-current protection, etc., to ensure the safety of users and equipment.
