Chamrider Battery is an ebike battery manufacturer and electric bicycle battery factory with 12 years of experience.

integrated ebike battery has a terminal protective cap to effectively protect the terminal and reduce the terminal loss rate. In addition, it has good corrosion resistance. In the development of Chamrider Battery integrated ebike battery, the research design is put into a huge cost. Repeated trials and tests are carried out to ensure the product quality. integrated ebike battery is mostly used in automobiles, motorcycles, tractors, diesel engines and other products. Dongguan Chamrider Technology Co., Ltd. provides good after-sales service and technical support for customers.

Product Information

Chamrider Battery guarantees ebike battery to be high-quality by carrying out highly standardized production. Compared with other products in the same category, it has the following advantages.

Product Specification

Parameter 1

Parameter 2

Parameter 3

Parameter	36V12AH	36V15.6AH	36V17.4AH	36V19.2AH	36V21AH
Nominal Power	432wh	561.6wh	626.4wh	691.2wh	756wh
Configuration	10S6P	10S6P	10S6P	10S6P	10S6P
Cell Brand	ChamRider	ChamRider	Samsung	ChamRider	Samsung
Cell Capacity	2000mah	2600mah	2900mah	3200mah	3500mah
Cell Type	18650
Built-in BMS	25A(Customized)
Fit Motor Power	36V250W-500W
APRX Weight（KG）	≈5.3	≈5.3	≈5.3	≈5.3	≈5.3

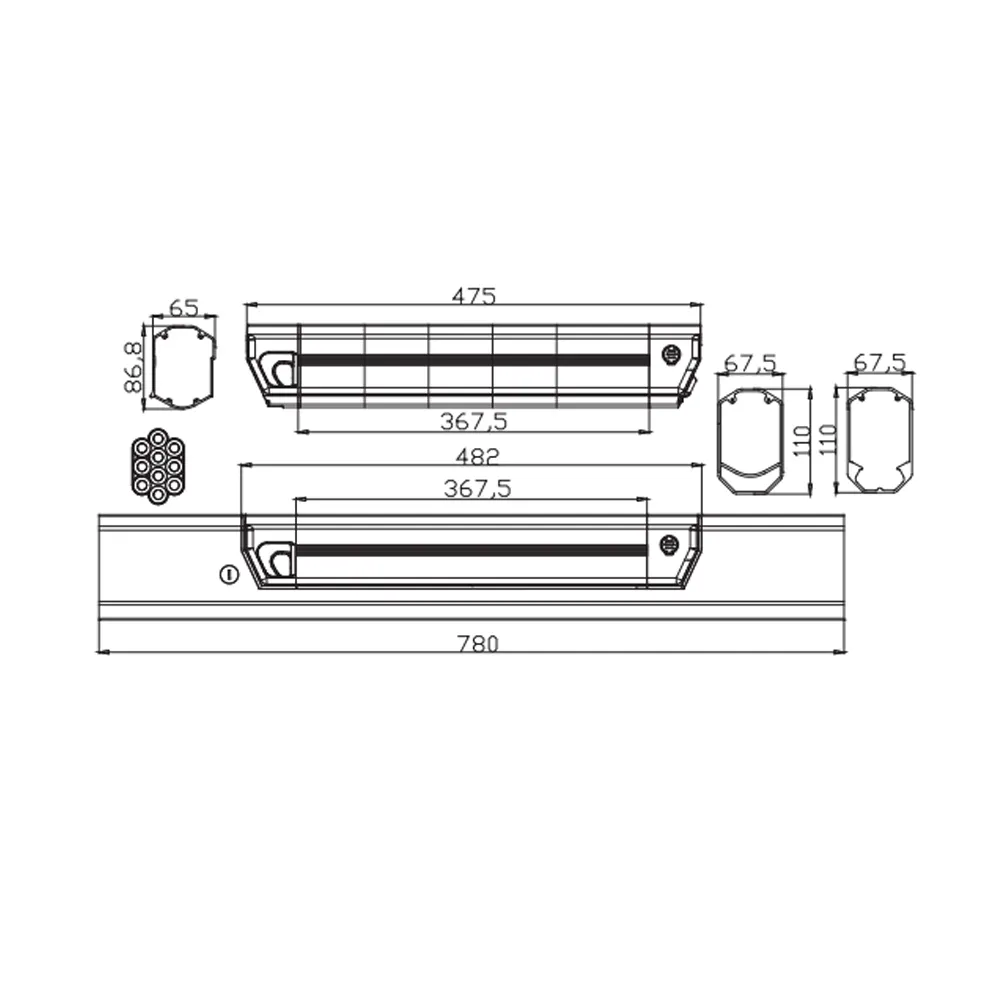

Dimension(mm)	47511067.5
Charge Current	1-5A
Life Cycle	≥80% Capacity After 500-800 cycles

Parameter	48V8AH	48V10.4AH	48V11.6AH	48V12.8AH	48V14AH
Nominal Power	384wh	499.2wh	556.8wh	614.4wh	672wh
Configuration	13S4P	13S4P	13S4P	13S4P	13S4P
Cell Brand	ChamRider	ChamRider	Samsung	ChamRider	Samsung
Cell Capacity	2000mah	2600mah	2900mah	3200mah	3500mah
Cell Type	18650
Built-in BMS	20A(Customized)	30A(Customized)
Fit Motor Power	48V250W-500W	48V250W-1000W
APRX Weight（KG）	≈4.8	≈4.8	≈4.8	≈4.8	≈4.8
Dimension(mm)	47511067.5
Charge Current	1-5A
Life Cycle	≥80% Capacity After 500-800 cycles

Parameter	52V6AH	52V7.8AH	52V8.7AH	52V9.6AH	52V10.5AH
Nominal Power	312wh	405.6wh	452.4wh	499.2wh	546wh
Configuration	14S3P	14S3P	14S3P	14S3P	14S3P
Cell Brand	ChamRider	ChamRider	Samsung	ChamRider	Samsung
Cell Capacity	2000mah	2600mah	2900mah	3200mah	3500mah
Cell Type	18650
Built-in BMS	15A(Customized)		25A(Customized)		30A(Customized)
Fit Motor Power	52V250W-350W		52V250W-500W		52V250W-1000W
APRX Weight（KG）	≈4.3	≈4.3	≈4.3	≈4.3	≈4.3
Dimension(mm)	47511067.5
Charge Current	1-5A
Life Cycle	≥80% Capacity After 500-800 cycles

Product Introduction

New Integrated Ebike Battery Supply | Chamrider Battery 3

Premium Nickel-Plated Cell Welding

The SEE-020 XUELONG I battery utilizes high-quality nickel-plated cell welding for superior performance and reliability. This advanced manufacturing technique ensures optimal conductivity and enhances the overall lifespan of the battery.

New Integrated Ebike Battery Supply | Chamrider Battery 4

High-Temperature Resistant Wiring Harness

Ride with confidence in any weather condition. The SEE-020 XUELONG I battery features a durable and heat-resistant wiring harness, designed to withstand high temperatures. This ensures consistent performance and longevity, even in demanding environments.

Integrated IC Technology

Experience enhanced safety and efficiency with the built-in integrated circuit (IC) technology. The SEE-020 XUELONG I battery is equipped with intelligent circuitry that monitors and regulates the battery's operation, maximizing its performance while protecting against potential hazards.

Overcurrent and Reverse Charging Protection

The SEE-020 XUELONG I battery incorporates advanced protective features, including overcurrent and reverse charging protection. This ensures that the battery operates within safe parameters and guards against potential damage caused by excessive current or reverse power flow

Short Circuit Protection

Safety is paramount with the SEE-020 XUELONG I. The battery is equipped with robust short circuit protection, safeguarding against accidental short circuits and preventing damage to the battery and connected devices.

FAQ

Can e-bike batteries be used on rainy days?

Most e-bike batteries are waterproof and can be used in light rain. However, to ensure the safety and longevity of the battery, it is best to avoid prolonged exposure to heavy rain or immersion in water.

Does the e-bike battery support removability?

The majority of e-bike batteries feature a modular design, making them easily changeable and replaceable. However, the details may vary depending on the brand and model of the e-bike.

What is the weight of the e-bike battery?

The weight of e-bike batteries varies by brand, capacity, and material. Generally speaking, the weight of e-bike batteries usually ranges from a few kilograms to more than ten kilograms.

How do you choose the right type of e-bike battery for you?

Types of e-bike batteries include lithium-ion batteries, nickel-metal hydride batteries, and so on. Lithium-ion batteries have high energy density and small size and are the most commonly used type of e-bike battery.

Do e-bike batteries have safety protection?

Most e-bike batteries are equipped with multiple safety features, such as overcharge protection, over-discharge protection, over-current protection, etc., to ensure the safety of users and equipment.

Company Introduction

Located in Dongguan Chamrider Technology Co., Ltd. is a professional enterprise. We mainly run the business of ebike battery. Our company perseveres in the philosophy of 'high quality, sustainable development', and sticks to the spirit of 'being faithful and people-oriented'. We are committed to becoming an outstanding enterprise in the industry. Chamrider Battery's R&D team has rich experience and mature technology. We have always focused on product innovation and have made a major breakthrough. This lays a solid foundation for the sustainable development of our company. Chamrider Battery has been engaged in the production of ebike battery for many years and has accumulated rich industry experience. We have the ability to provide comprehensive and quality solutions according to actual situations and needs of different customers.
The products produced are qualified products of high quality. If you are interested in our products, please contact us!
