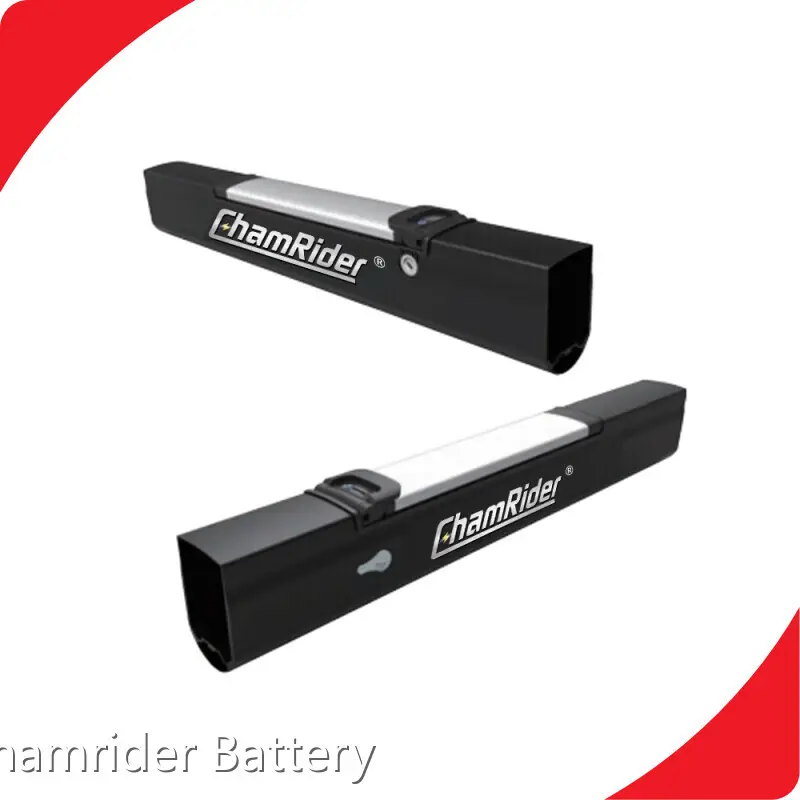

Latest Chamrider Battery Ebike with Integrated Battery - 1

Latest Chamrider Battery Ebike with Integrated Battery - 2

Latest Chamrider Battery Ebike with Integrated Battery -

Inquiry

Product details of the ebike with integrated battery

Quick Overview

ebike with integrated battery is characterized by large capacity, strong deep discharge capability, and low self-discharge rate. High in quality, affordable in price, it is a highly cost-effective product. Chamrider Battery ebike with integrated battery is offered utilizing the advanced technology and high-efficiency equipment. Chamrider Battery promises that we will check every detail of this product. ebike with integrated battery, excellent in quality, is often used in automobiles, motorcycles, tractors, diesel engines and other products. Dongguan Chamrider Technology Co., Ltd. takes the lead in grasping the development trend of ebike with integrated battery industry.

Product Introduction

Our ebike with integrated battery has a certain share in the market because of the following characteristics.

Product Specification

Parameter 1

Parameter 2

Parameter 3

Parameter	36V10AH	36V13AH	36V14.5AH	36V16AH	36V17.5AH
Nominal Power	360wh	468wh	522wh	576wh	630wh
Configuration	10S5P	10S5P	10S5P	10S5P	10S5P
Cell Brand	ChamRider	ChamRider	Samsung	ChamRider	Samsung
Cell Capacity	2000mah	2600mah	2900mah	3200mah	3500mah
Cell Type	18650
Built-in BMS	25A(Customized)
Fit Motor Power	36V250W-500W
APRX Weight（KG）	≈3.5	≈3.5	≈3.5	≈3.5	≈3.5

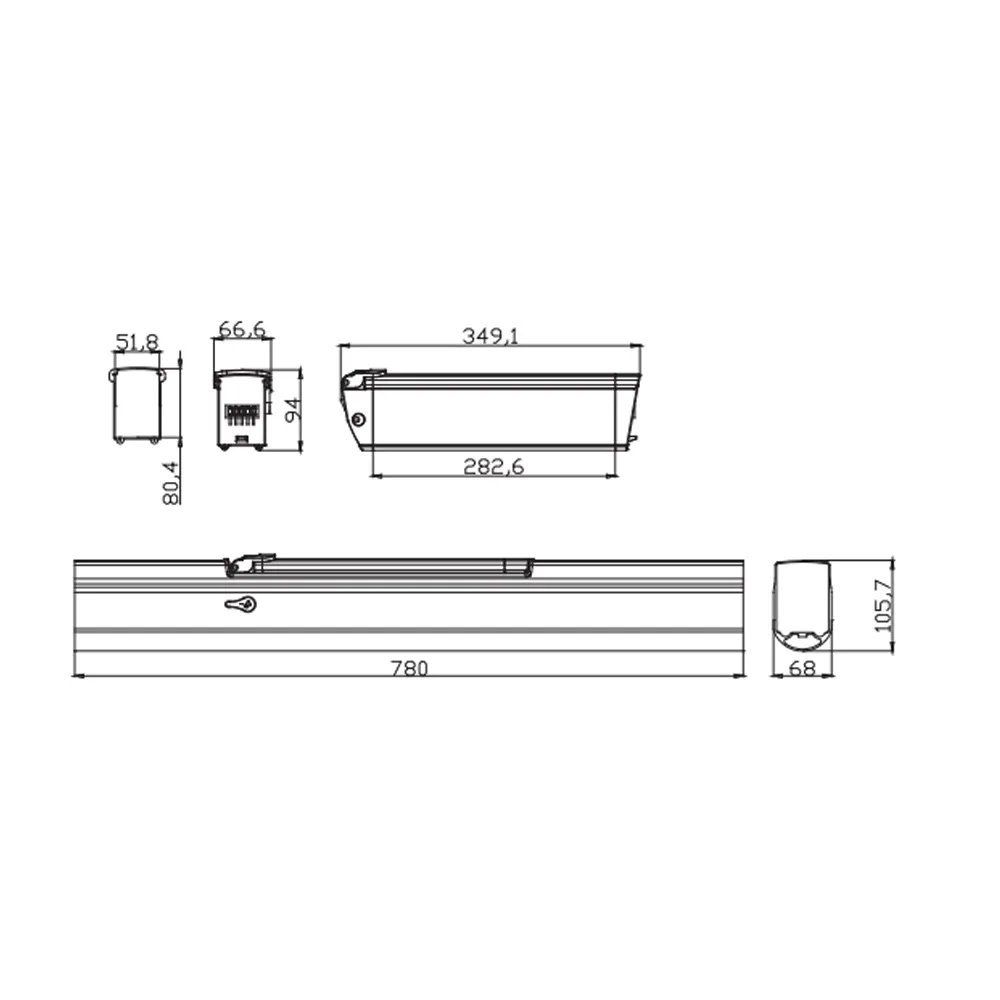

Dimension(mm)	349.166.694
Charge Current	1-5A
Life Cycle	≥80% Capacity After 500-800 cycles

Parameter	48V10.4AH	48V11.6AH	48V12.8AH	48V14AH
Nominal Power	499.2wh	556.8wh	614.4wh	672wh
Configuration	13S4P	13S4P	13S4P	13S4P
Cell Brand	ChamRider	Samsung	ChamRider	Samsung
Cell Capacity	2600mah	2900mah	3200mah	3500mah
Cell Type	18650
Built-in BMS	30A(Customized)
Fit Motor Power	48V250W-1000W
APRX Weight（KG）	≈3.69	≈3.69	≈3.69	≈3.69
Dimension(mm)	349.166.694
Charge Current	1-5A
Life Cycle	≥80% Capacity After 500-800 cycles

Parameter	52V10.5AH
Nominal Power	546wh
Configuration	14S3P
Cell Brand	Samsung
Cell Capacity	3500mah
Cell Type	18650
Built-in BMS	30A(Customized)
Fit Motor Power	52V250W-1000W
APRX Weight（KG）	≈3.54
Dimension(mm)	349.166.694
Charge Current	1-5A
Life Cycle	≥80% Capacity After 500-800 cycles

Product Introduction

Latest Chamrider Battery Ebike with Integrated Battery - 3

Low-Noise Output for Comfortable and Quiet Operation

The SEE-059 Lushan I is designed to deliver a low-noise output, ensuring a comfortable and peaceful user experience. Say goodbye to disruptive noise and enjoy the tranquility while using your device powered by this battery. Experience the perfect balance between power and serenity.

Latest Chamrider Battery Ebike with Integrated Battery - 4

High-Efficiency Design for Power Saving

With its high-efficiency design, the SEE-059 Lushan I optimizes power usage, resulting in significant energy savings. This not only helps reduce electricity consumption but also extends the battery's runtime. Embrace an environmentally friendly and cost-effective solution with the SEE-059 Lushan I.

Stringent Quality Control for Guaranteed Performance

ChamRider prioritizes stringent quality control measures to ensure the SEE-059 Lushan I meets the highest standards. Every battery undergoes rigorous testing and inspection, guaranteeing optimal performance and reliability. Trust in the SEE-059 Lushan I to deliver consistent and exceptional results.

Simple Maintenance for Convenient Use

The SEE-059 Lushan I is designed for hassle-free maintenance, ensuring a convenient user experience. Its user-friendly features and easy-to-follow maintenance procedures allow for smooth operation and reduced downtime. Spend less time on maintenance and more time enjoying the benefits of your device.

High Stability for Minimal External Interference

The SEE-059 Lushan I exhibits exceptional stability, making it highly resistant to external influences. Whether it's variations in temperature, voltage fluctuations, or other external factors, this battery maintains its performance and reliability with unwavering stability. Trust in the SEE-059 Lushan I to provide consistent power, regardless of the environment.

FAQ

Can e-bike batteries be used on rainy days?

Most e-bike batteries are waterproof and can be used in light rain. However, to ensure the safety and longevity of the battery, it is best to avoid prolonged exposure to heavy rain or immersion in water.

Does the e-bike battery support removability?

The majority of e-bike batteries feature a modular design, making them easily changeable and replaceable. However, the details may vary depending on the brand and model of the e-bike.

What is the weight of the e-bike battery?

The weight of e-bike batteries varies by brand, capacity, and material. Generally speaking, the weight of e-bike batteries usually ranges from a few kilograms to more than ten kilograms.

How do you choose the right type of e-bike battery for you?

Types of e-bike batteries include lithium-ion batteries, nickel-metal hydride batteries, and so on. Lithium-ion batteries have high energy density and small size and are the most commonly used type of e-bike battery.

Do e-bike batteries have safety protection?

Most e-bike batteries are equipped with multiple safety features, such as overcharge protection, over-discharge protection, over-current protection, etc., to ensure the safety of users and equipment.

Company Introduction

Located in Dongguan Chamrider Technology Co., Ltd.(Chamrider Battery) is a professional company. We are dedicated to the business of ebike battery. Based on the operation tenet of 'manufacturing high-quality products, creating value for customers', our company seeks perfection in products and service, so as to promote a healthy and sustainable development. Chamrider Battery has introduced a group of professional and experienced technicians to form a team with strong R&D capability and high comprehensive strength, which provides a strong guarantee for healthy corporate development. With a focus on customers, Chamrider Battery analyzes problems from the perspective of customers. And we provide customers with comprehensive, professional and excellent solutions.
Look forward to inquiries from customers in various industries

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
