Chamrider Battery is an ebike battery manufacturer and electric bicycle battery factory with 12 years of experience.

Electric Bicycle Battery Factory Chamrider Battery Company 1

Electric Bicycle Battery Factory Chamrider Battery Company 2

Electric Bicycle Battery Factory Chamrider Battery Company 3

Electric Bicycle Battery Factory Chamrider Battery Company 4

Electric Bicycle Battery Factory Chamrider Battery Company 5

Electric Bicycle Battery Factory Chamrider Battery Company

Inquiry

Product details of the electric bicycle battery factory

Product Overview

electric bicycle battery factory is manufactured based on high-quality materials and is processed by special techniques. It has good corrosion resistance and small contact resistance with active materials to play a good discharge role. Compact in structure, it is easy to assemble and disassemble. Manufactured using advanced technology based on the guidelines of lean production, Chamrider Battery electric bicycle battery factory represents the finest workmanship in the industry. Even in extreme condition, our electric bicycle battery factory can work normally. electric bicycle battery factory can be used in automobiles, motorcycles, tractors, diesel engines and other products. The comprehensive sales network has helped Chamrider Battery to win more customers.

Product Introduction

Compared with other products in the same category, electric bicycle battery factory has outstanding advantages which are mainly reflected in the following points.

Product Specification

Parameter 1

Parameter 2

Parameter 3

Parameter	36V10AH	36V13AH	36V14.5AH	36V16AH	36V17.5AH	36V12AH	36V13.5AH	36V15AH
Nominal Power	360wh	468wh	522wh	576wh	630wh	432wh	486wh	540wh
Configuration	10S5P	10S5P	10S5P	10S5P	10S5P	10S3P	10S3P	10S3P
Cell Brand	ChamRider	ChamRider	Samsung	ChamRider	Samsung	ChamRider	ChamRider	Samsung
Cell Capacity	2000mah	2600mah	2900mah	3200mah	3500mah	4000mah	4500mah	5000mah
Cell Type	18650					21700
Built-in BMS	25A(Customized)
Fit Motor Power	36V250W-500W
APRX Weight（KG）	≈4	≈4	≈4	≈4	≈4	≈3.2	≈3.2	≈3.2
Dimension(mm)	36289.997
Charge Current	1-5A
Life Cycle	≥80% Capacity After 500-800 cycles

Parameter	48V8AH	48V10.4AH	48V11.6AH	48V12.8AH	48V14AH	48V8AH	48V9AH	48V10AH
Nominal Power	384wh	499.2wh	556.8wh	614.4wh	672wh	384wh	432wh	480wh
Configuration	13S4P	13S4P	13S4P	13S4P	13S4P	13S2P	13S2P	13S2P
Cell Brand	ChamRider	ChamRider	Samsung	ChamRider	Samsung	ChamRider	ChamRider	Samsung
Cell Capacity	2000mah	2600mah	2900mah	3200mah	3500mah	4000mah	4500mah	5000mah
Cell Type	18650					21700
Built-in BMS	30A(Customized)		40A(Customized)			15A(Customized)
Fit Motor Power	48V250W-1000W		48V250W-1500W			48V250W-350W
APRX Weight（KG）	≈4.1	≈4.1	≈4.1	≈4.1	≈4.1	≈2.9	≈2.9	≈2.9
Dimension(mm)	36289.997
Charge Current	1-5A
Life Cycle	≥80% Capacity After 500-800 cycles

Parameter	52V7.8AH	52V8.7AH	52V9.6AH	52V10.5AH
Nominal Power	405.6wh	452.4wh	499.2wh	546wh
Configuration	14S3P	14S3P	14S3P	14S3P
Cell Brand	ChamRider	Samsung	ChamRider	Samsung
Cell Capacity	2600mah	2900mah	3200mah	3500mah
Cell Type	18650
Built-in BMS	20A(Customized)		30A(Customized)
Fit Motor Power	52V250W-500W		52V250W-1000W
APRX Weight（KG）	≈3.6	≈3.6	≈3.6	≈3.6
Dimension(mm)	36289.997
Charge Current	1-5A
Life Cycle	≥80% Capacity After 500-800 cycles

Product Introduction

Electric Bicycle Battery Factory Chamrider Battery Company 6

Versatile Cell Options

The SEA MOON F offers state-of-the-art 18650 or 21700 cell options, enabling riders to select a battery configuration that best suits their needs. This flexibility ensures optimal power output for various cycling needs.

Electric Bicycle Battery Factory Chamrider Battery Company 7

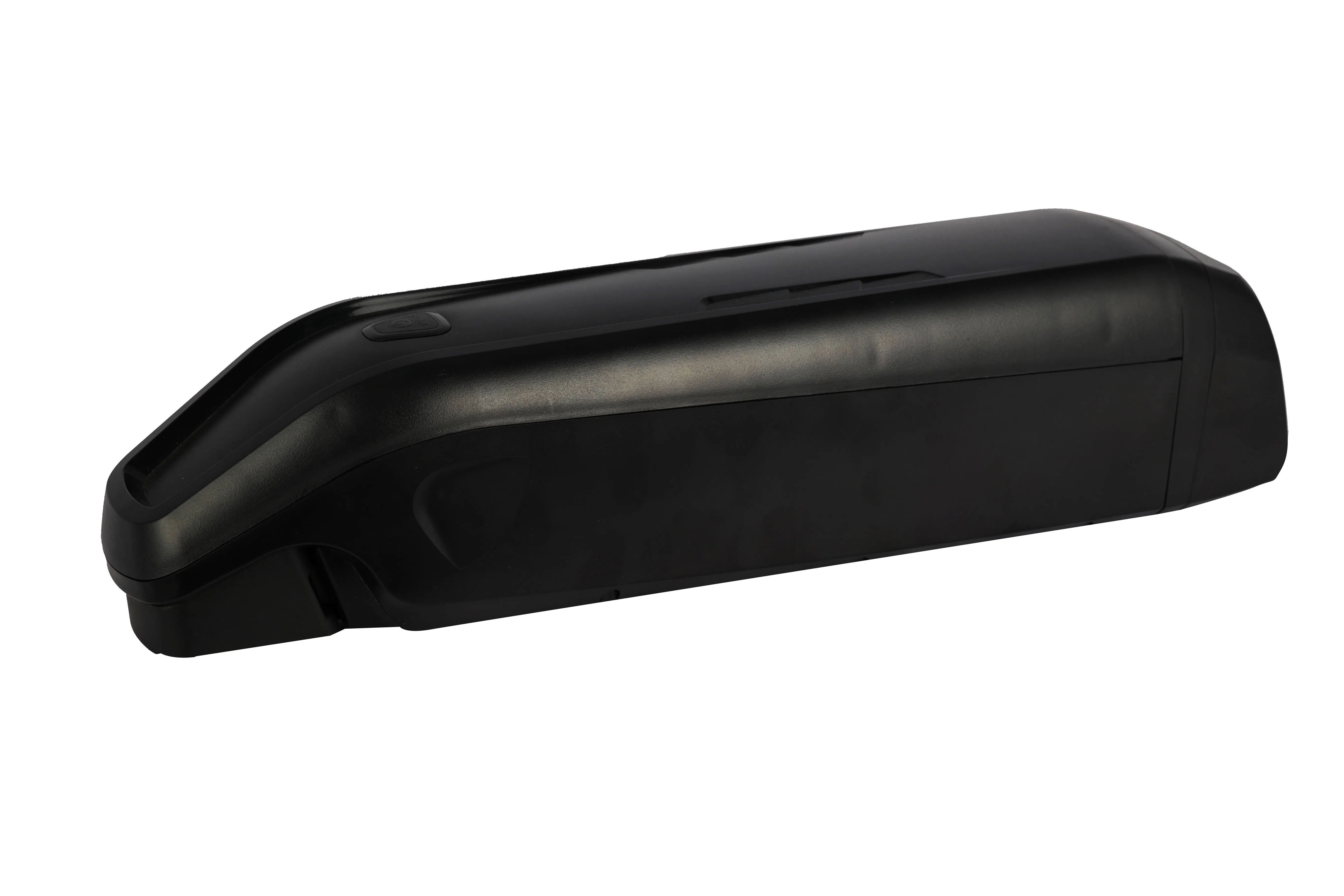

Robust Aluminum-Plastic Casing

The SEA MOON F's durable and resilient aluminum-plastic casing sets it apart. This casing not only enhances the battery's structural integrity but also provides added protection against external elements, ensuring longevity and reliability in various riding conditions.

Proprietary 6-Pin Discharge Terminal

ChamRider's commitment to cutting-edge technology is demonstrated in the battery's proprietary 6-pin discharge terminal. The unique design optimizes power distribution and enhances overall performance, setting a new standard for electric bike batteries.

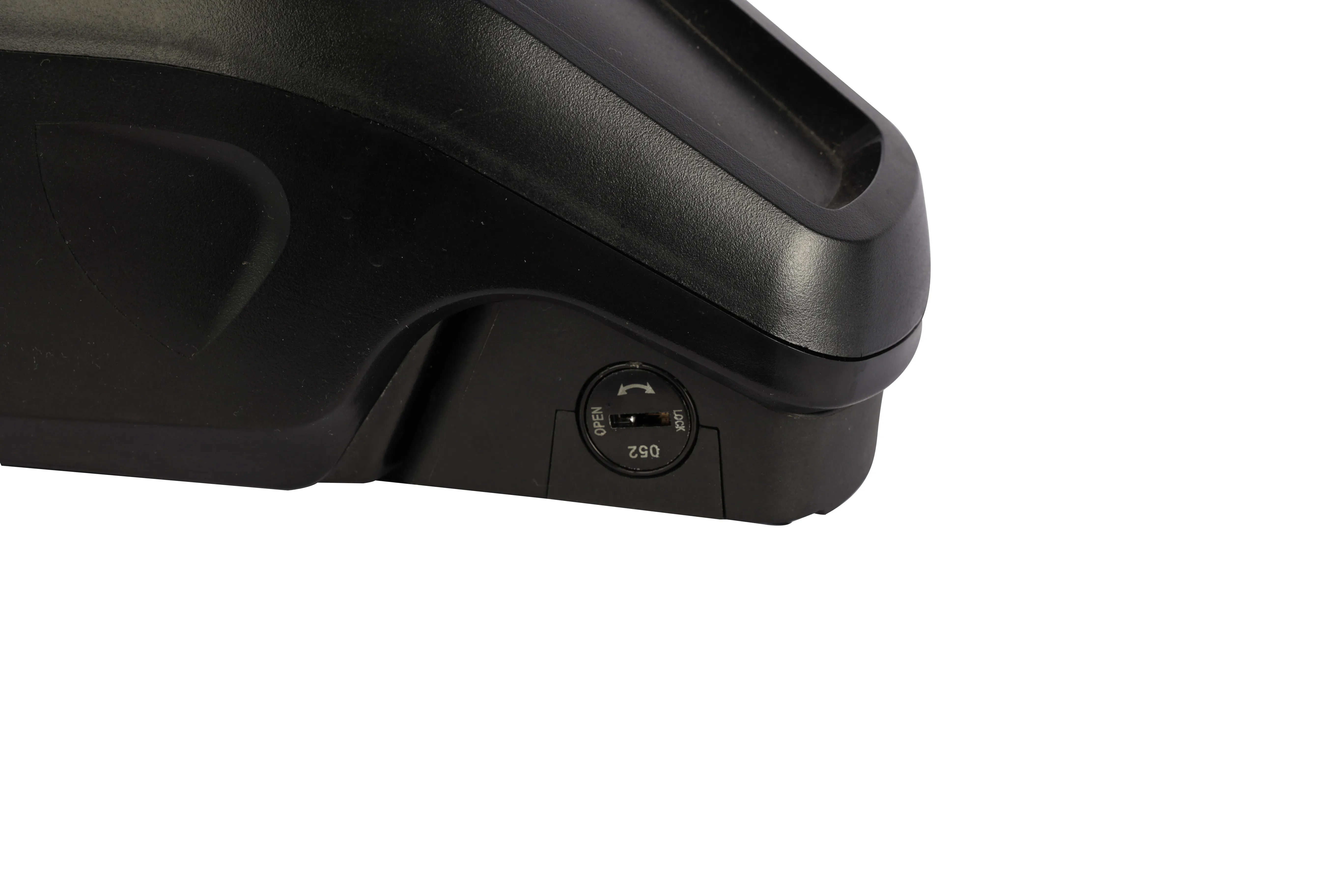

Integrated Elastic Lock Mechanism

The innovative built-in elastic lock mechanism on the SEA MOON F's casing enhances both security and the ease with which the battery is attached and removed.

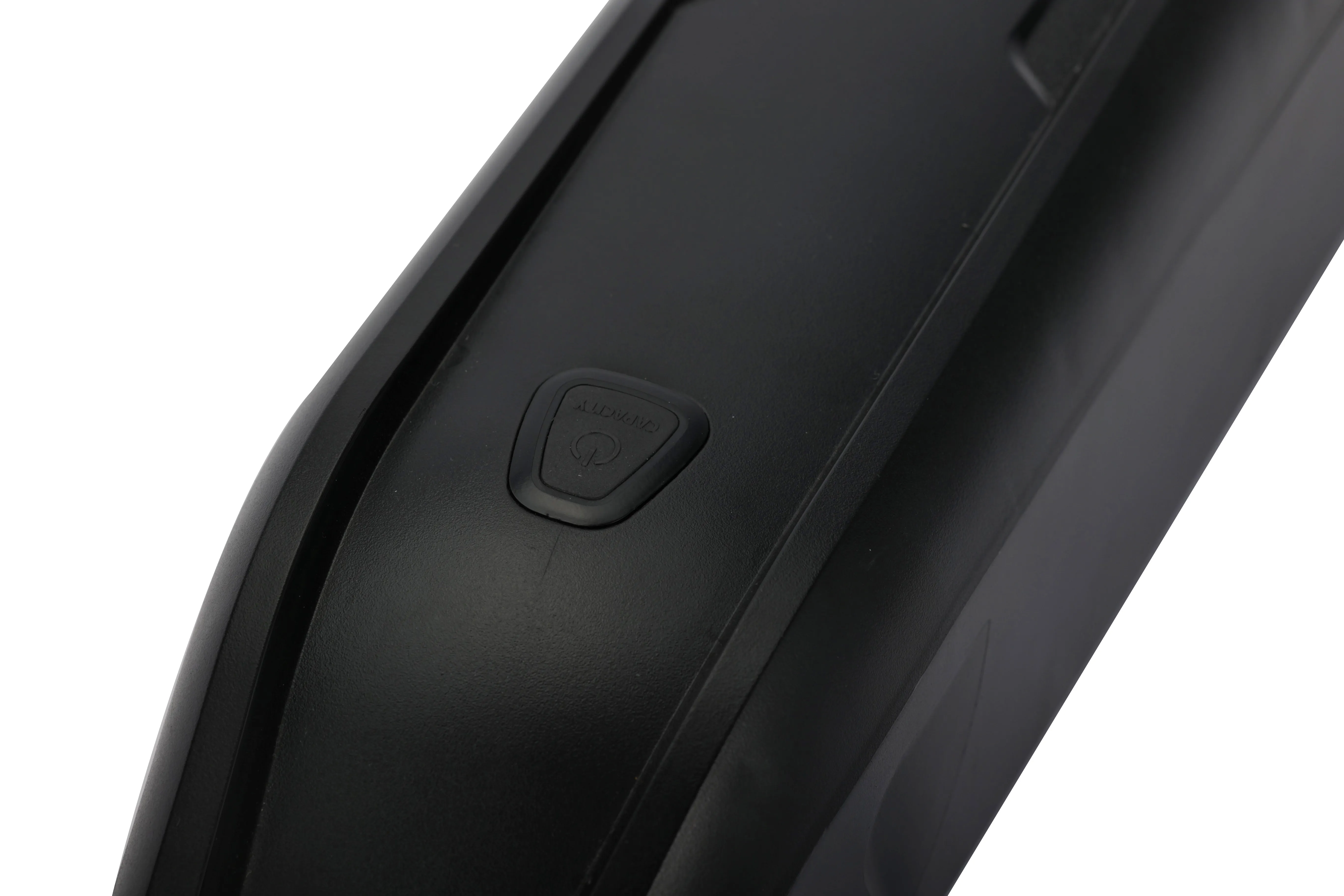

Clear 3-Light Battery Indicator

Tracking your battery's status is a breeze with the SEA MOON F's clear 3-light battery indicator. This feature allows riders to monitor their power levels at a glance, ensuring they have the information needed to plan their rides effectively and avoid unexpected power depletion.

FAQ

Can e-bike batteries be used on rainy days?

Most e-bike batteries are waterproof and can be used in light rain. However, to ensure the safety and longevity of the battery, it is best to avoid prolonged exposure to heavy rain or immersion in water.

Does the e-bike battery support removability?

The majority of e-bike batteries feature a modular design, making them easily changeable and replaceable. However, the details may vary depending on the brand and model of the e-bike.

What is the weight of the e-bike battery?

The weight of e-bike batteries varies by brand, capacity, and material. Generally speaking, the weight of e-bike batteries usually ranges from a few kilograms to more than ten kilograms.

How do you choose the right type of e-bike battery for you?

Types of e-bike batteries include lithium-ion batteries, nickel-metal hydride batteries, and so on. Lithium-ion batteries have high energy density and small size and are the most commonly used type of e-bike battery.

Do e-bike batteries have safety protection?

Most e-bike batteries are equipped with multiple safety features, such as overcharge protection, over-discharge protection, over-current protection, etc., to ensure the safety of users and equipment.

Company Advantages

Dongguan Chamrider Technology Co., Ltd., a company, is mainly engaged in the production, processing, and sales of ebike battery. At present, Chamrider Battery enjoys significant recognition and admiration in the industry depending on accurate market positioning, good product quality, and excellent services. If you would like to purchase our products, please contact us as soon as possible.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
