Ebike Lithium Battery Chamrider Battery-1
Product details of the ebike lithium battery
Product Information
ebike lithium battery is fantastic with its unique shape. The performance of this product is superior to other similar products on the market. Exports are booming becauseDongguan Chamrider Technology Co., Ltd. is very competitive and lead the industry in ebike lithium battery technology.
Product Specification
Parameter 1
Parameter 2
Parameter 3
| Parameter | 36V18AH | 36V23.4AH | 36V26.1AH | 36V28.8AH | 36V31.5AH | 36V24AH | 36V27AH | 36V30AH |
| Nominal Power | 648wh | 842.4wh | 939.6wh | 1036.8wh | 1134wh | 864Wh | 972Wh | 1080wh |
| Configuration | 10S9P | 10S9P | 10S9P | 10S9P | 10S9P | 10S6P | 10S6P | 10S6P |
| Cell Brand | ChamRider | ChamRider | Samsung | ChamRider | Samsung | ChamRider | ChamRider | Samsung |
| Cell Capacity | 2000mah | 2600mah | 2900mah | 3200mah | 3500mah | 4000mah | 4500mah | 5000mah |
| Cell Type | 18650 | 21700 | ||||||
| Built-in BMS | 25A(Customized) | |||||||
| Fit Motor Power | 36V250W-500W | |||||||
| APRX Weight（KG） | ≈5.63 | ≈5.63 | ≈5.63 | ≈5.63 | ≈5.63 | ≈5.25 | ≈5.25 | ≈5.25 |
| Dimension(mm) | 367.3*90.3*127.3 | |||||||
| Charge Current | 1-5A | |||||||
| Life Cycle | ≥80% Capacity After 500-800 cycles | |||||||
| Parameter | 48V 14AH | 48V 18.2AH | 48V20.3AH | 48V 22.4AH | 48V24.5AH | 48V20AH | 48V22.5AH | 48V25AH |
| Nominal Power | 672wh | 873.6wh | 974.4wh | 1075.2wh | 1176wh | 960wh | 1080wh | 1200wh |
| Configuration | 13S7P | 13S7P | 13S7P | 13S7P | 13S7P | 13S5P | 13S5P | 13S5P |
| Cell Brand | ChamRider | ChamRider | Samsung | ChamRider | Samsung | ChamRider | ChamRider | Samsung |
| Cell Capacity | 2000mah | 2600mah | 2900mah | 3200mah | 3500mah | 4000mah | 4500mah | 5000mah |
| Cell Type | 18650 | 21700 | ||||||
| Built-in BMS | 40A(Customized) | |||||||
| Fit Motor Power | 48V250W-1500W | |||||||
| APRX Weight（KG） | ≈5.635 | ≈5.635 | ≈5.635 | ≈5.635 | ≈5.635 | ≈4.6 | ≈4.6 | ≈4.6 |
| Dimension(mm) | 367.3*90.3*127.3 | |||||||
| Charge Current | 1-5A | |||||||
| Life Cycle | ≥80% Capacity After 500-800 cycles | |||||||
| Parameter | 52V15.6AH | 52V17.4AH | 52V19.2AH | 52V21AH | 52V 16AH | 52V 18AH | 52V 20AH |
| Nominal Power | 811.2wh | 904.8wh | 998.4wh | 1092wh | 832wh | 936wh | 1040wh |
| Configuration | 14S6P | 14S6P | 14S6P | 14S6P | 14S4P | 14S4P | 14S4P |
| Cell Brand | ChamRider | Samsung | ChamRider | Samsung | ChamRider | ChamRider | Samsung |
| Cell Capacity | 2600mah | 2900mah | 3200mah | 3500mah | 4000mah | 4500mah | 5000mah |
| Cell Type | 18650 | 21700 | |||||
| Built-in BMS | 40A(Customized) | 40(Customized) | |||||
| Fit Motor Power | 52V250W-1500W | 52V250W-500W | |||||
| APRX Weight（KG） | ≈5.3 | ≈5.3 | ≈5.3 | ≈5.3 | ≈4.8 | ≈4.8 | ≈4.8 |
| Dimension(mm) | 367.3*90.3*127.3 | ||||||
| Charge Current | 1-5A | ||||||
| Life Cycle | ≥80% Capacity After 500-800 cycles | ||||||
Product Introduction
Effortless Installation
Say goodbye to complicated and time-consuming installations. The Hailong Max Battery is designed with user-friendliness in mind. Whether you're a seasoned electric bike enthusiast or a beginner, the installation process is a breeze. It effortlessly fits into your bike's frame and electric system, saving you time and effort. Now, you can spend less time in the garage and more time on the road.
Premium A-Grade Cells
At the heart of the Hailong Max Battery are brand-new A-grade cells, representing the pinnacle of battery technology. These cells are known for their reliability, longevity, and consistent high performance. Whether you're commuting to work or embarking on adventurous rides, these cells ensure that your electric bike is always ready to deliver the power you need.
Advanced BMS Functions
The Battery Management System (BMS) of the Hailong Max Battery is a technological marvel. It offers a range of advanced functions to enhance both the performance and safety of your electric bike. One such function is temperature control, which maintains optimal operating conditions to prevent overheating and extend the battery's life. This feature ensures that your electric bike continues to perform at its best, even on long rides.
Locking Battery Case for Maximum Security

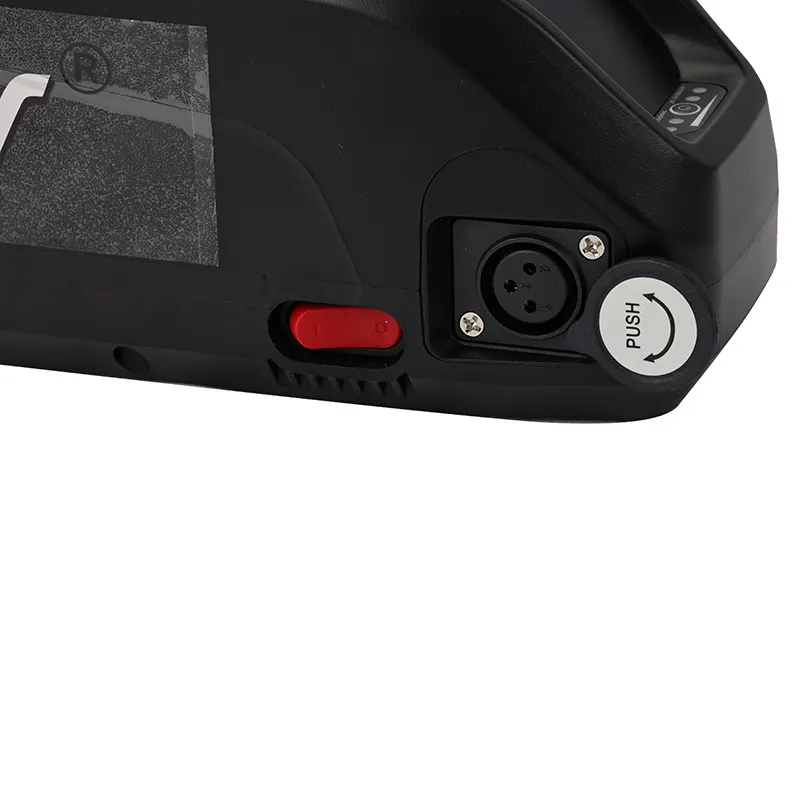

Safety and security are paramount when it comes to electric bike batteries. The Hailong Max Battery addresses this with a locking battery case equipped with an integrated key lock. This innovative anti-theft feature provides you with the confidence that your investment is well-protected. You can leave your bike unattended without worrying about unauthorized access to your battery.

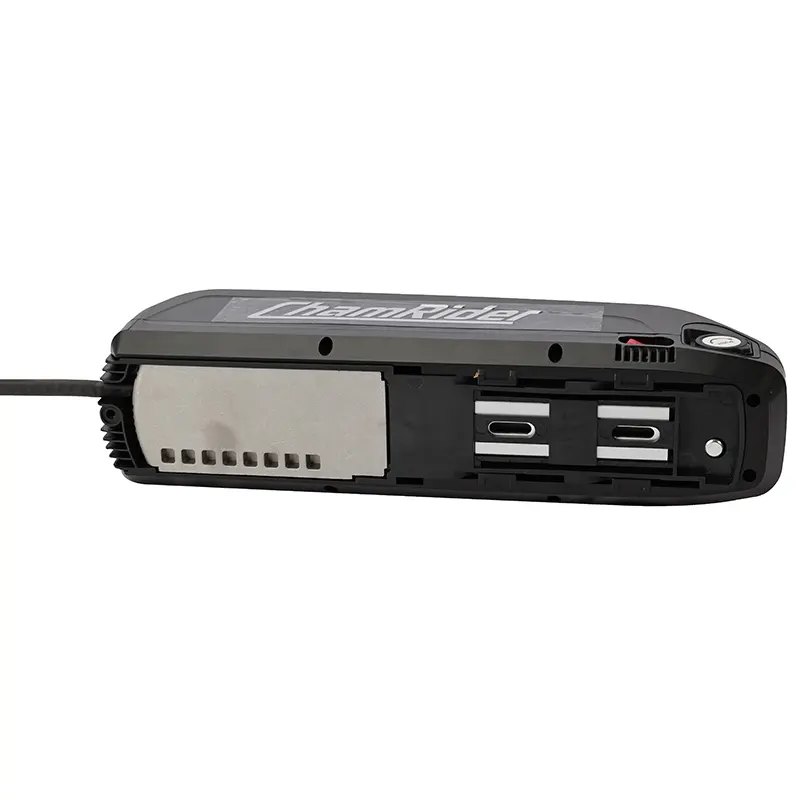

Durable Aluminum Alloy Base Plate
To ensure durability and vibration resistance, the Hailong Max Battery features an aluminum alloy base plate. This base plate is designed to withstand the rigors of electric biking, ensuring that your battery remains secure and functioning optimally even on rough terrains.
Application
FAQ
1
How long does an e-bike battery last?
The lifespan of an e-bike battery varies widely based on factors like brand, quality, and usage. Generally speaking, the lifespan of an e-bike battery usually ranges from a few years to several years, which is affected by factors such as the number of times of charging, charging method, usage environment, and quality.
2
How to extend the life of an e-bike battery?
Avoid over-charging and discharging: Try to strike a balance between charging and discharging the battery.
Appropriate charging: Use the original or compatible charger for charging, avoid using unsuitable charging equipment.
Suitable storage: If not in use for an extended period, store the battery in a cool, dry, and shade-free area, maintaining an appropriate level of charge.
3
What is the charging time for e-bike batteries?
The time it takes to charge an e-bike battery depends on its capacity and the power of the charger. An ordinary e-bike battery usually takes between a few hours and eight hours to fully charge.
4
How do you choose the capacity of the e-bike battery?
The capacity of your battery should align with your needs and the expected range of your e-bike. Larger-capacity batteries usually provide a longer range, but they also increase the size and weight of the battery.
5
How can I tell how much power is left in my e-bike battery?
Most e-bike batteries are equipped with a battery display or LED indicator, which indicates the remaining charge level through different displays, such as a percentage of charge or a few cells of charge display.
