Product Specification
Parameter 1
Parameter 2
Parameter 3
| Parameter | 36V12AH | 36V15.6AH | 36V17.4AH | 36V19.2AH | 36V21AH | 36V12AH | 36V13.5AH | 36V15AH |
| Nominal Power | 432wh | 561.6wh | 626.4wh | 691.2wh | 756wh | 432wh | 486wh | 540wh |
| Configuration | 10S6P | 10S6P | 10S6P | 10S6P | 10S6P | 10S3P | 10S3P | 10S3P |
| Cell Brand | ChamRider | ChamRider | Samsung | ChamRider | Samsung | ChamRider | ChamRider | Samsung |
| Cell Capacity | 2000mah | 2600mah | 2900mah | 3200mah | 3500mah | 4000mah | 4500mah | 5000mah |
| Cell Type | 18650 | 21700 | ||||||
| Built-in BMS | 25A25A(Customized) | |||||||
| Fit Motor Power | 36V250W-500W | |||||||
| APRX Weight（KG） | ≈5.3 | ≈5.3 | ≈5.3 | ≈5.3 | ≈5.3 | ≈3.95 | ≈3.95 | ≈3.95 |

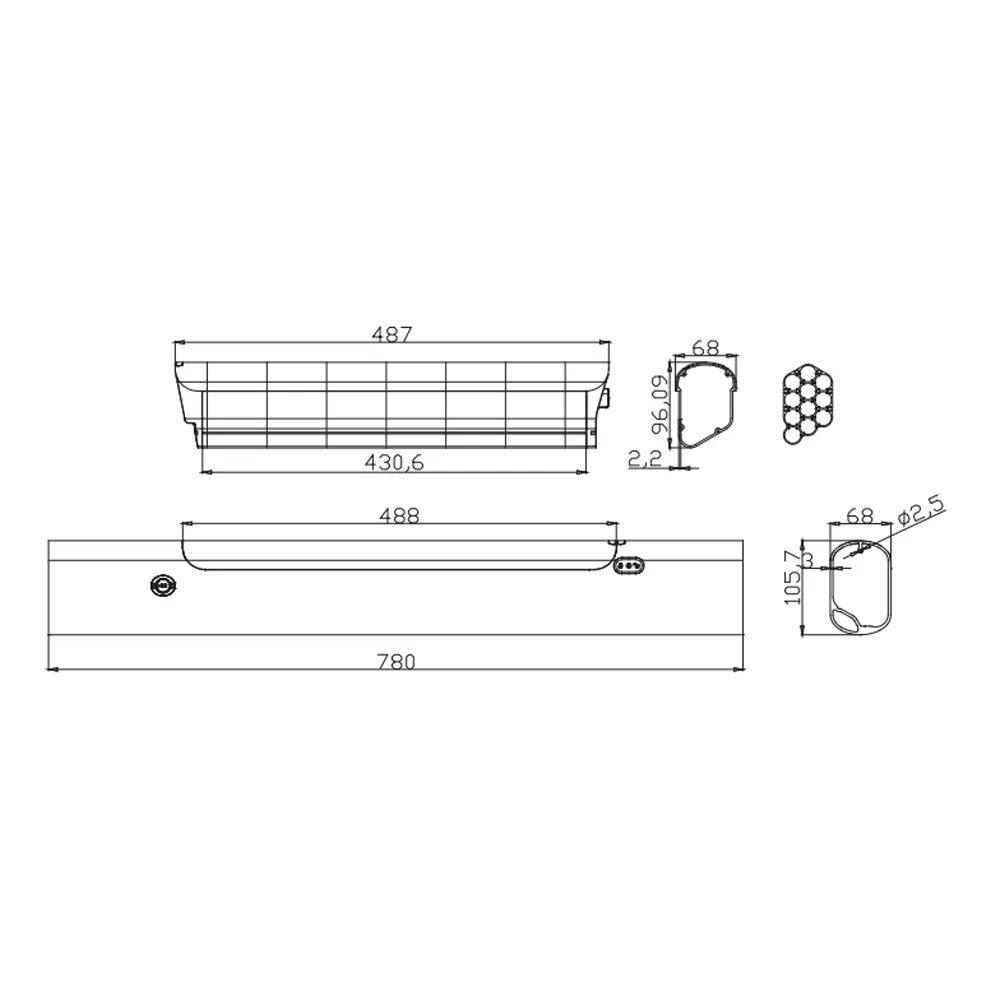

| Dimension(mm) | 487*68*96.09 | |||||||
| Charge Current | 1-5A | |||||||
| Life Cycle | ≥80% Capacity After 500-800 cycles | |||||||
| Parameter | 48V10A | 48V13AH | 48V14.5AH | 48V16AH | 48V17.5AH |
| Nominal Power | 480wh | 624wh | 696wh | 768wh | 840wh |
| Configuration | 13S5P | 13S5P | 13S5P | 13S5P | 13S5P |
| Cell Brand | ChamRider | ChamRider | Samsung | ChamRider | Samsung |
| Cell Capacity | 2000mah | 2600mah | 2900mah | 3200mah | 3500mah |
| Cell Type | 18650 | ||||
| Built-in BMS | 30A(Customized) | ||||
| Fit Motor Power | 48V250W-1000W | ||||
| APRX Weight（KG） | ≈5.6 | ≈5.6 | ≈5.6 | ≈5.6 | ≈5.6 |
| Dimension(mm) | 487*68*96.09 | ||||
| Charge Current | 1-5A | ||||
| Life Cycle | ≥80% Capacity After 500-800 cycles | ||||
| Parameter | 52V8AH | 52V10.4AH | 52V11.6AH | 52V12.8AH | 52V14AH |
| Nominal Power | 416wh | 540.8wh | 603.2wh | 665.6wh | 728wh |
| Configuration | 14S4P | 14S4P | 14S4P | 14S4P | 14S4P |
| Cell Brand | ChamRider | ChamRider | Samsung | ChamRider | Samsung |
| Cell Capacity | 2000mah | 2600mah | 2900mah | 3200mah | 3500mah |
| Cell Type | 18650 | ||||
| Built-in BMS | 20A(Customized) | 30A(Customized) | |||
| Fit Motor Power | 52V250W-500W | 52V250W-1000W | |||
| APRX Weight（KG） | ≈5.05 | ≈5.05 | ≈5.05 | ≈5.05 | ≈5.05 |
| Dimension(mm) | 487*68*96.09 | ||||
| Charge Current | 1-5A | ||||
| Life Cycle | ≥80% Capacity After 500-800 cycles | ||||
Product Introduction
Customizable Discharge Terminal
The SOUTH PACIFIC IV PRO offers the flexibility of customizable discharge terminals, allowing for seamless integration with a wide range of eBike systems. This feature ensures compatibility and ease of installation, catering to the specific requirements of riders.
Flame-Retardant Battery Cell Mounting
The battery cells of the SOUTH PACIFIC IV PRO are securely mounted using flame-retardant brackets. This design enhances safety and reliability by providing effective protection against potential thermal incidents, ensuring peace of mind for riders on their journeys.
Advanced Manufacturing Techniques
Crafted with meticulous attention to detail, the SOUTH PACIFIC IV PRO benefits from ChamRider's mature and refined manufacturing techniques. These techniques yield a product of exceptional quality, durability, and performance, meeting the high standards expected by riders.
High-Quality Nickel-Welded Battery Pack
The battery pack of the SOUTH PACIFIC IV PRO is constructed using high-quality nickel-welded cells. This welding process ensures robust connections, minimizing the risk of voltage drops and maximizing the battery's efficiency and longevity. Riders can rely on this battery to deliver consistent power output throughout their rides.
High-Temperature Resistant Wiring Harness
The SOUTH PACIFIC IV PRO employs a high-temperature resistant wiring harness, built to withstand the demanding conditions of eBike usage. This feature ensures reliable performance even in environments with elevated temperatures, providing riders with a worry-free and enjoyable riding experience.
FAQ
1
Can e-bike batteries be used on rainy days?
Most e-bike batteries are waterproof and can be used in light rain. However, to ensure the safety and longevity of the battery, it is best to avoid prolonged exposure to heavy rain or immersion in water.
2
Does the e-bike battery support removability?
The majority of e-bike batteries feature a modular design, making them easily changeable and replaceable. However, the details may vary depending on the brand and model of the e-bike.
3
What is the weight of the e-bike battery?
The weight of e-bike batteries varies by brand, capacity, and material. Generally speaking, the weight of e-bike batteries usually ranges from a few kilograms to more than ten kilograms.
4
How do you choose the right type of e-bike battery for you?
Types of e-bike batteries include lithium-ion batteries, nickel-metal hydride batteries, and so on. Lithium-ion batteries have high energy density and small size and are the most commonly used type of e-bike battery.
5
Do e-bike batteries have safety protection?
Most e-bike batteries are equipped with multiple safety features, such as overcharge protection, over-discharge protection, over-current protection, etc., to ensure the safety of users and equipment.
